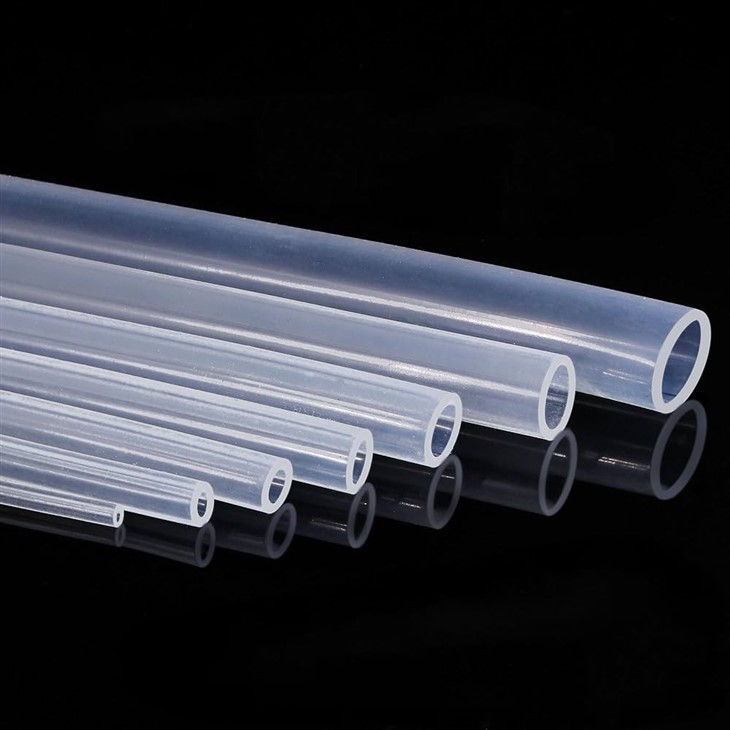

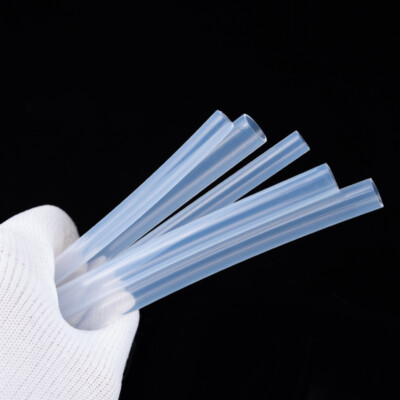

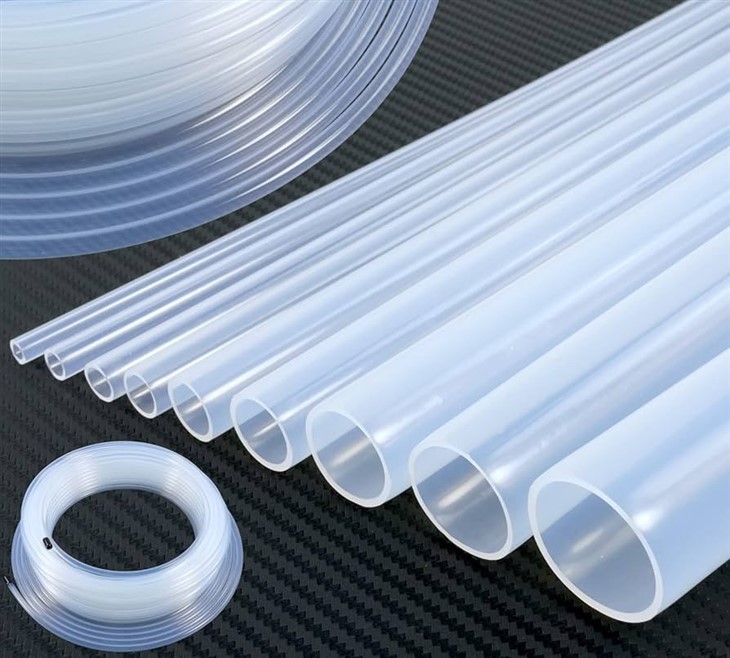

Tshuaj PFA Tubing 1/16 "
PFA (Perfluoroalkoxy) tubing yog qhov siab -kev ua tau zoo, hloov tau, thiab pob tshab fluoropolymer tubing paub txog cov tshuaj tiv thaiv zoo tshaj, siab - kub siab ntev (txog 500℃/ 260 degree), thiab roj permeability tsawg. Nws yog qhov zoo tagnrho rau corrosive, semiconductor, thiab kev kho mob cov ntaub ntawv uas yuav tsum tau purity heev. Nws muaj qhov smoother nto, siab dua kev ntsuam xyuas, thiab zoo dua clarity tshaj PTFE.
Lub ntsiab nta thiab qhov zoo
PFA cov kav dej yog qhov kev xaiv zoo tshaj plaws rau kev thov kev thov vim lawv qhov kev ua tau zoo sib xws.
Tshuaj tsis kam: PFA muaj qhov ua haujlwm siab heev rau yuav luag tag nrho cov khoom siv tshuaj, kua qaub, alkalis thiab cov kuab tshuaj.
Kev ua haujlwm kub ntawm cov kav dej PFA yog qhov dav heev, los ntawm -200℃(-328℃F) mus rau 260℃(500℃F), ua rau lawv tsim nyog rau ob qho tib si qhov kub thiab txias.
High-purity thiab low-leaching PFA, tshwj xeeb tshaj yog qib siab -purity (HP), muaj qib qis qis heev ntawm cov hlau ions thiab cov khoom siv organic, txo qhov kev pheej hmoo ntawm cov dej paug. Nws ua raws li SEMI F-57 daim ntawv pov thawj tus qauv thiab tsim nyog rau kev thauj mus los ntawm cov dej ntshiab thiab cov tshuaj purity siab.
Transparency thiab yooj yooj yim: PFA kav yog ib nrab -pob tshab rau pob tshab, ua kom yooj yim rau kev soj ntsuam cov kua dej. Nws kuj muaj qhov yooj yooj yim thiab ua haujlwm rau kev ntxhov siab tawg.
Lub sab hauv du ntawm qhov tsis yog - nplaum nto muaj qhov sib txhuam qis thiab kev tiv thaiv zoo heev - nplaum, uas pab tiv thaiv cov khoom sib txuam thiab yooj yim los ntxuav thiab tua kab mob.
Vim nws muaj ntau yam thiab kev ntseeg tau, PFA kav yog siv nyob rau hauv ntau yam kev lag luam tseem ceeb.
Cov tshuab xa khoom siv hauv kev tsim khoom semiconductor los tuav cov khoom siv ultra- cov tshuaj ntshiab, cov kuab tshuaj thiab cov pa roj carbon monoxide muaj cov kev xav tau purity siab heev.
Kev ua tshuaj lom neeg muaj feem xyuam rau cov kab hauv ob sab hauv ntawm cov kav dej, cov tshuab hluav taws xob thiab cov khoom siv hluav taws xob rau kev thauj khoom corrosive media. Pharmaceuticals thiab biotechnology ua raws li FDA cov cai thiab biocompatibility yuav tsum, thiab yog siv rau hauv kev xa tshuaj, tshuaj lom neeg thiab khoom siv kho mob.
Kev lag luam khoom noj khoom haus thiab dej haus tuaj yeem siv rau cov kav dej ua zaub mov vim nws ua raws li FDA cov qauv kev sib cuag zaub mov thiab yooj yim - rau - cov yam ntxwv huv.
Nws muaj cov khoom siv hluav taws xob zoo heev thiab cov nplaim hluav taws kub hnyiab (UL 94 V-0), thiab tuaj yeem siv los ua ib qho insulating sheath rau cov xov hlau thiab cables.
PFA, PTFE, thiab FEP yog siab -kev ua tau zoo fluoropolymers nrog tshuaj lom neeg tshwj xeeb, tab sis lawv txawv ntawm kev ua, kub, thiab yoog raws.PTFEmuaj cov cua kub zoo tshaj plaws / tshuaj tiv thaiv tab sis tsis yaj- ua tau.FEPyog pob tshab thiab yooj yim rau txheej txheem, haum rau qis kub.PFAtxuas qhov sib txawv, muab PTFE-zoo li kev ua tau zoo nrog cov yaj- kev ua tau zoo ntawm FEP, ntxiv rau kev ntxhov siab zoo dua thiab ua kom huv dua.
Qhov txawv tseem ceeb
- Kev ua:PFA thiab FEP yog yaj-processable (txhaj tshuaj molded / extruded), thaum PTFE yuav tsum tau tshwj xeeb sintering los yog machining.
- Kub:PFA thiab PTFE ua haujlwm txog li ~ 260℃(500℃F), thaum FEP muaj qhov ntsuas kub siab tshaj plaws (feem ntau nyob ib puag ncig 200℃txog 205 degree).
- Pob tshab:FEP yog pob tshab; PFA yog translucent; PTFE yog opaque.
- Tus nqi:PTFE feem ntau yog tus nqi qis tshaj, ua raws li FEP, nrog PFA yog qhov kim tshaj plaws.
Thaum twg xaiv qhov twg
PTFE
Qhov zoo tshaj plaws rau cov tshuaj tiv thaiv siab tshaj plaws, qhov kub siab tshaj plaws, thiab tsis yog - cov nplaum nplaum, qhov twg cov duab tsis tas yuav tsum tau (piv txwv li, gasket seals, chemical linings, PTFE daim kab xev).
FEP
Qhov zoo tshaj plaws rau cov ntawv thov uas xav tau kom pom tseeb, yoog raws, thiab cua sov yooj yim - sealing, xws li rwb thaiv tsev cable, tubing lab, thiab cov khoom siv hnub ci.
PFA
Zoo tagnrho rau siab - daim ntaub ntawv purity, semiconductor manufacturing, thiab complex, molded qhov yuav tsum tau muaj tshuaj lom neeg / kub tsis kam.
Kev Them Nyiaj & Shipping
|
Ntim |
Carton / Pallet / Ntoo Box |
|
Shipping txoj kev |
Los ntawm nthuav qhia, Los ntawm huab cua, Los ntawm hiav txwv |
|
FOB Chaw nres nkoj |
Shenzhen |
|
Lub sijhawm tsim khoom |
Nyob ntawm koj qty (3 ~ 15 hnub) |
| OEM / ODM | Muaj |
| Kev them nyiaj | TT / Ali them / Ali Assurance |
FAQ
PFA Tube Inch Qhov ntau thiab tsawg
|
Sab hauv |
Sab nraud |
Phab ntsa thickness |
Khoov Radius |
|
(IN.) |
(IN.) |
(IN.) |
(IN.) |
|
1/16" |
1/8" |
0.030" |
1/2" |
|
3/32" |
5/32" |
0.030" |
1/2" |
|
1/8" |
3/16" |
0.030" |
3/4" |
|
1/8" |
1/4" |
0.063" |
1/2" |
|
3/16" |
1/4" |
0.030" |
1" |
|
1/4" |
5/16" |
0.030" |
1 3/4" |
|
1/4" |
3/8" |
0.063" |
1" |
|
3/8" |
1/2" |
0.063" |
1" |
|
1/2" |
9/16" |
0.030" |
12" |
|
5/8" |
3/4" |
0.063" |
6" |
